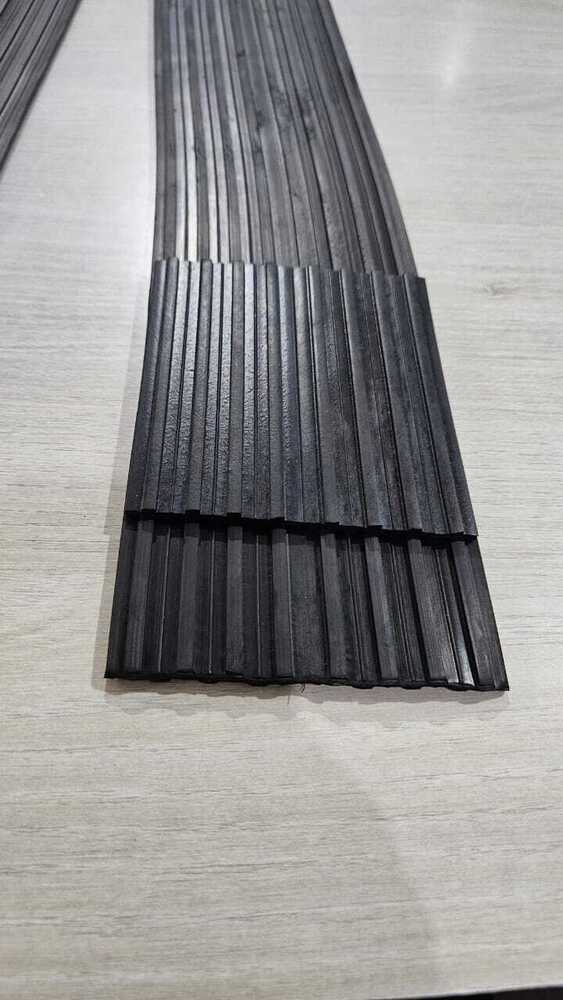

EPDM Rubber Damper

25.0 INR/Meter

Product Details:

  • Diameter Custom Millimeter (mm)
  • Tensile Strength 8 18 MPa Kilopascals (KPa)
  • Width 95 mm
  • Product Type Rubber Damper
  • Thickness Custom Millimeter (mm)
  • Temperature Resistance Approx. 40 C to +150 C
  • Material EPDM Rubber
  • Click to view more
X

EPDM Rubber Damper Price And Quantity

  • 100 Meter
  • 25.0 INR/Meter

EPDM Rubber Damper Product Specifications

  • Approx. 40 C to +150 C
  • Rubber Damper
  • Custom Millimeter (mm)
  • 95 mm
  • 8 18 MPa Kilopascals (KPa)
  • Custom Millimeter (mm)
  • 5 MM
  • Black, unless specified otherwise
  • 50 80 Shore A
  • Custom Millimeter (mm)
  • EPDM Rubber
  • Excellent

EPDM Rubber Damper Trade Information

  • Vadodara
  • Cash Advance (CA), Cheque
  • 10000 Meter Per Day
  • 3 Days
  • Standard
  • All India
  • Yes

Product Description

EPDM Rubber Damper Typical Product Composition

  • Base material: EPDM (Ethylene Propylene Diene Monomer) synthetic rubber

  • Polymer: EPDM rubber compound

  • Carbon black: Reinforcing filler for strength and wear resistance

  • Mineral fillers: Used to control hardness, density, and cost

  • Plasticizer/processing oil: Improves flexibility and processing

  • Vulcanizing/cure system: Sulfur or peroxide-based curing agents

  • Accelerators: Used where sulfur curing is applied

  • Zinc oxide & stearic acid: Common cure-system additives

  • Antioxidants/antiozonants: Improve resistance to aging, ozone, and weather

  • Pigment: Usually black; other colors can be produced if required

Typical Technical Specification

Property Typical EPDM Damper
Material EPDM Rubber
Hardness 5080 Shore A
Tensile Strength 818 MPa
Elongation 200500%
Operating Temperature Approx. 40C to +150C
Weather/Ozone Resistance Excellent
Water Resistance Excellent
UV Resistance Excellent
Oil Resistance Poor to moderate
Chemical Resistance Good
Construction Solid molded rubber / rubber-metal bonded
Color Black, unless specified otherwise

Important: The exact formulation and properties depend on the application and manufacturer. If the damper is for automotive, engine mounting, machinery vibration isolation, HVAC, or industrial equipment, the specification should be adjusted accordingly.

EPDM Rubber Damper Manufacturer

EPDM Rubber Damper Manufacturer in india

EPDM Rubber Damper Manufacturer in Gujarat

EPDM Rubber Damper Manufacturer in Vadodara






Exceptional Customization and Material Quality

Our EPDM Rubber Damper is tailored to your specific requirements, with customizable length, diameter, thickness, and width. Constructed from high-grade EPDM rubber, it guarantees excellent resistance to water absorption, making it suitable even in demanding industrial environments. This material quality ensures longevity, resilience, and consistent performance.


Wide Temperature Tolerance and Mechanical Strength

Designed to withstand a range of extreme temperatures from -40C up to +150C, this damper retains its mechanical properties across diverse applications. Its impressive tensile strength (8-18 MPa) and variable hardness (50-80 Shore A) enable it to effectively absorb shocks and vibrations, protecting crucial equipment and structures.

FAQ's of EPDM Rubber Damper:


Q: How is the EPDM Rubber Damper customized to fit specific requirements?

A: The EPDM Rubber Damper can be customized in terms of length, diameter, thickness, and width as per your project needs. You can specify these dimensions during the ordering process to ensure an exact match for your equipment or application.

Q: What benefits does the EPDM Rubber Damper offer regarding water absorption and environmental durability?

A: This damper has excellent water absorption resistance, allowing it to perform reliably in moisture-rich or challenging environments. The robust EPDM rubber material resists degradation from water, UV, and most chemicals, extending its operational life.

Q: When should an EPDM Rubber Damper be used in industrial settings?

A: EPDM Rubber Dampers are ideal for installations requiring effective vibration and shock absorption, such as machinery mounting, HVAC systems, and automotive assemblies. Their resistance to wide temperature fluctuations and harsh environments makes them suitable for both indoor and outdoor use.

Q: Where are EPDM Rubber Dampers commonly applied?

A: These dampers are widely utilized across industries such as automotive, HVAC, construction, and manufacturing, wherever vibration, noise reduction, or shock absorption is required. Their adaptability makes them fitting for both stationary and mobile equipment.

Q: What is the manufacturing process for EPDM Rubber Dampers?

A: Manufacturing involves molding or extruding high-quality EPDM rubber compounds to the desired shape and dimensions, followed by precise curing and finishing processes that ensure consistent hardness and strength.

Q: How does using an EPDM Rubber Damper benefit your equipment?

A: Implementing these dampers protects equipment from excessive vibrations, noise, and shocks, minimizing wear, prolonging service life, and enhancing in-service reliability and safety.
